20KN-1000KN 500KN Tensile Testing Machine UTM Hydraulic Tensile Testing Machine HD-B616-3

1.0 Sets
MOQ
20KN-1000KN 500KN Tensile Testing Machine UTM Hydraulic Tensile Testing Machine HD-B616-3
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Warranty: 1 YEAR
Customized support: OEM, ODM
Model Number: HD-B616-3
Power: Hydraulic, Hydraulic
Max. load: 1000KN
Load range: 20KN-1000KN
Load accuracy: ±1%
Elongation resolution: 0.01mm
Piston stroke: 250mm
Max. piston stroke speed: 50mm/min
Elongation accuracy: ±1%
Informação básica
Model Number: HD-B616-3
Condições de Pagamento e Envio
Packaging Details: mooden case
Supply Ability: 30 Set/Sets per Month
Descrição de produto
Products Description

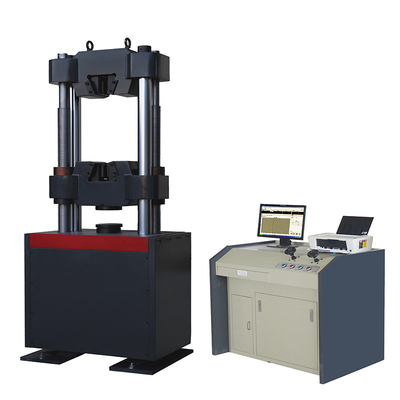

This machine with underneath type oil cylinder and four columns structure is mainly used to do tension, compression, bending, shearing test for metal materials, non-metal material. It is applied for fields of metallurgy, construction, light industry, aviation, aerospace, materials, universities,scientific research units, etc.


Applications

1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength,
compression strength, etc.
Details Images
Product Paramenters
Measure range
4%-100%F.S
Load cell brand
Oil pressure sensor, China brand
200T (30T, 60T, 100T are optional)
Load accuracy
1% F.S
Available tensile stroke
900mm
Available compression stroke
800mm
Test speed
50mm/min
Round sample diameter
Φ15-φ70mm
Flat sample thickness
0-50mm
Flat sample width
125mm
Horizontal test space
700mm
Compression diameter
Φ204mm
Operation control
Hydraulic
Display
PC
Curves display
Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display
Max. force, speed, sample information, strength etc…
Safety features
E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
