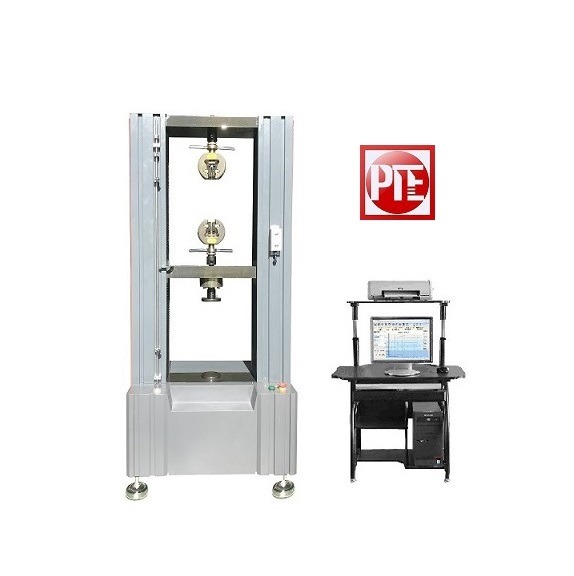

WDW-300 Universal Tensile Testing Machine With Extensometer
Applications:
WDW-300 Electromechanical Manual Universal Bend and Tensile Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards.
It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request.
It is for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Specifications:
|
Model |
WDW-300 |
WDW-200 |
WDW-100 |
WDW-50 |
WDW-20 |
WDW-10 |
|
Max. Load |
300KN |
200KN |
100KN |
50KN |
20KN |
10KN |
|
Load accuracy |
≤±1% |
|||||
|
Load range |
2%-100% of full scale |
|||||
|
Test speed |
0.01-250mm/min |
0.01-500mm/min |
0.01-500mm/min |
|||
|
Speed accuracy |
≤±1% |
|||||
|
Displacement resolution |
0.01mm |
|||||
|
Effective test width |
570mm |
400mm |
400mm |
|||
|
Effective tensile space |
600mm |
600 |
||||
|
Effective compression space |
700mm |
700mm |
||||
|
Dimension |
1130×650×2650mm |
830×550×2000mm |
760×500×1750mm |
|||
|
Power supply |
380V, 3ph, 4/3KW |
220V, 1ph, 1.5KW |
220V, 1ph, 1KW |
|||
|
Weight |
1800KG |
720KG |
460KG |
|||
|
Grips |
Wedge type, plate type and other grips as consumer’s demand |
|||||
|
Load frame type |
Gate type |
|||||
Features:
Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
--------------------------------------------------------------------------------------------------------------------------------------------------------
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
Our company is one of the top-ranking manufacturers and suppliers of test machines worldwide. With many years of experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials test.
